Hybrid Digital Mixer & Streaming Interface

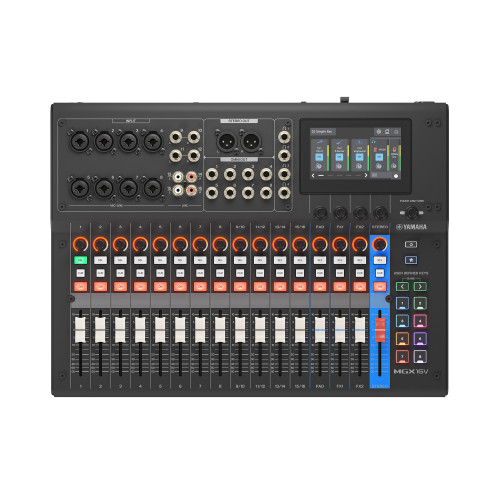

The Yamaha MGX16V is a revolutionary 16-channel digital mixing console that bridges the gap between live sound, recording, and modern content creation. Building on the legacy of the MG series, it integrates a powerful USB-HDMI audio/video interface directly into the mixer. This allows you to capture and pass through high-definition video (up to 4K/60fps) while mixing broadcast-quality audio, making it the ultimate hub for live streaming, gaming, and hybrid events.
Broadcast-Ready Video Integration
Unlike traditional audio mixers, the MGX16V is designed for the visual age. It features HDMI IN/THRU ports with USB capture functionality, enabling you to sync professional audio with video from cameras or consoles seamlessly. With Bluetooth connectivity, a built-in microSD recorder (16-track), and dedicated "Sound Pads" for triggering samples in real-time, it offers a complete production studio workflow in a lightweight, 10.4 lb package.
"True Sound" Precision & Control
Yamaha’s "True Sound" philosophy drives the MGX16V, utilizing 8 premium MGX mic preamps and high-performance AD/DA converters to deliver a massive 125 dB dynamic range. Control is effortless via the touchscreen GUI, physical 60mm faders, and the "Touch and Turn" knob. It also features a suite of intelligent DSP tools, including Amp Simulators, Voice Changers, and the "Ducker" for automatic priority ducking, ensuring your mix is polished and professional.
Key Features
- HDMI-USB Interface: Capture and pass-through video (4K/60fps, 1080p/240fps) directly via the mixer.
- Hybrid Connectivity: Features USB (22-track), Bluetooth, and MicroSD (16-track) recording/playback.
- MGX Preamps: 8 Mic/Line combo inputs with 86 dB gain range and ultra-low distortion.
- Creative Control: 8 customizable Sound Pads for triggering effects or samples.
- Intelligent DSP: Includes Smart Gain, Clip Safe, Reverb, Delay, and Amp Simulations.
- Streamlined Workflow: 16 physical faders combined with a responsive touchscreen interface.
Specifications
- Channels: 16 (8 Mono, 4 Stereo)
- Mic Preamps: 8x MGX Combo Jacks
- Video I/O: HDMI IN, HDMI THRU (USB Capture)
- Video Resolution: Up to 4K/60fps or 1080p/240fps
- Recording: USB (22-track), MicroSD (16-track)
- Outputs: 2x XLR Main, 8x TRS Omni Out, 4x Headphone
- Weight: 10.4 lbs
- Control: Touchscreen, Faders, 1-Knob "Touch and Turn"
