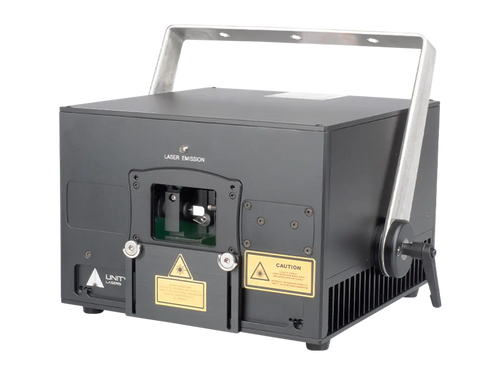

RAW 3 FB4
Advanced Multimedia Setups
The new Unity RAW 3 FB4 lasers were designed for the emerging professional who needs to interface lasers into more advanced multimedia setups. Ideal for clubs, DJs, and medium sized indoor venues (up to 3,000 people), these lasers integrate our industry-leading FB4 control hardware into the devices. Providing you with the same control infrastructure the professionals use, and a FREE copy of our powerful QuickShow software and MoboLaser app (for Apple and Android) to design, create, and control with. Using RAW 3 FB4, you can make any type of laser display you can imagine (beam shows, graphics, text, logos, or mapping sequences) and control your show content however you desire – be it from a lighting console, PC, or in stand-alone “auto” mode. Patch into other lighting networks as well, for seamless control of your lasers, lighting, and other FX.
Features
Control
Unity RAW FB4 lasers come with our FB4 hardware integrated inside. Allowing you to control these lasers from a lighting console, PC, as well as in stand-alone “auto” mode. Additionally, the lasers support all major lighting protocols (DMX, ArtNET, sACN, timecode, and more) so you can easily integrate into any advanced multimedia show workflow.
The RAW FB4 lasers include a FREE copy of our QuickShow software as well, so you can design, create, and program your laser shows, however you desire. You can then playback your created content from a lighting console (triggering your effects) or live (with MIDI) or from a timeline using a PC. Finally, as the lasers include a FREE copy of QuickShow, you can also control them from a mobile application (Apple or Android) using the new MoboLaser app that is included.
Multiple lasers can also easily be connected (over ethernet, ArtNET, or DMX) so you can run synchronized multi-projector shows easily.
Functionality and safety
All systems are pure diode-based with a balanced white output, and feature true analog modulation for smooth fade-in, and fade-out effects. And we equip the RAW FB4 lasers with the very latest in laser safety features (including e-stop and interlock with manual reset, emission delay, mechanical shutter, and masking plate). Convenient external adjustments are also provided natively on the lasers through the FB4 digital display, offering tools to adjust size, position, rotation, colors, geometric correction, and more. Additionally, the lasers feature ethernet in (and out, on 5W and 10W models), power in/out, DMX in/out, Estop in/out, and ILDA OUT connectivity.
What's in the package?
- Laser projector
- QuickShow software
- Protective case
- E-stop remote
- E-stop cable [10M/30ft]
- Ethernet cable [10M/30ft]
- Power cable [10M/30ft]
- Safety interlock
- Safety keys [x4]
- Manual
- Quickstart guide
- Variance card
Specifications
- Product Name: Unity RAW 3 FB4
- Type Of Laser: Full-color, Semiconductor diode laser system
- Guaranteed Optical Output: >3W
- Suitable For: Clubs, DJs, medium indoor venues (up to 3,000 people), home and hobby use. Beam show, text, graphic, and mapping capable
- Control Signal: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA Out | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]
- Scanning System: 30,000 points per second @ 8°
- Scan Angle: 50°
- Safety: Fully complies with the latest EN 60825-1 and FDA regulations
- Package Includes: Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US)
- R | G | B [mW]: 500 | 800 | 1,700
- R | G | B [Wavelength]: 638nm | 520nm | 450nm
- Beam Size [mm]: 5 x 3
- Beam Divergence: <1.1mrad [Full Angle]
- Modulation: Analog 50kHz
- Power Requirements: 100-230V/50-60Hz
- Consumption: Max. 100W
- Operation Temperature: 10-40°C
- Ingress Rating: IP4X
- System Features:All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA Out.
- Laser Safety Features: Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
- Notice: *Due to Advanced Optical Correction technology used in our laser systems, each laser color's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.
