GigBAR MOVE + ILS

SKU:
GIGBARMOVEPLUSILS
|
UPC:
781462222949
Shipping:
Eligible For Free Shipping
$1,299.99
$1,733.32
(You save $433.33 )

As low as $216.66 per month
With 6 month financing

Apply now!

As low as $108.33 per month
With 12 month financing

Apply now!

As low as $54.17 per month
With 24 month financing

Apply now!

As low as $27.08 per month
With 48 month financing

Apply now!

Expected release date is 7th Nov 2022

Select Reserve Now to secure your spot in the queue with no money down at checkout

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick seBienvenue dans letup.



Highlights

  • 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

  • Control any ILS-enabled fixture wired or wirelessly

  • Use the included RF remote to trigger the built-in shows without needing line of sight

  • Powerful moving heads with separate color and gobo wheels allow for creative programming

  • Totem Mode keeps the moving heads focused on the dance floor

  • Easy navigation and access to all moving head functions directly from the full-color LCD display

  • System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup

  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects

  • Individual control of each effect ensures your show looks the way you need it to

  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch



Specifications

  • DMX Channels: 3, 28, or 50
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/180°
  • Colors:
    (moving head): 9 + open, split colors, continuous scroll at variable speeds
  • Gobos:
    (moving head): 9 + open, continuous scroll at variable speeds
  • Light Source:
    (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
    (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
    (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
    (Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
  • Strobe Rate: 0 to 30 Hz
  • Beam Angle:
    (moving head): 17°
    (pars): 22°
    (strobe): 30°
  • Field Angle:
    (pars): 33°
    (strobe): 62°
  • Coverage Angle:
    (derby): 131°
    (laser): 93°
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Illuminance:
    (pars): 1,205 lux @ 2 m (per par)
    (moving head): 5,140 lux @ 2 m (per head)
    (strobe): 130 lux @ 2 m
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    81 W, 1.1 A @ 120 V, 60 Hz
    79 W, 0.6 A @ 230 V, 50 Hz
    248 W, 1.8 A @ 230 V, 50 Hz
  • Weight: (bar only) 31 lbs (14 kg)
  • Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
  • Approvals: CE, UKCA, RoHS, FCC, FDA
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Footswitch Operating Frequency: 433 MHz
  • Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch Battery: 9 V alkaline
  • Included Controllers: RF remote, wireless footswitch
  • Cable Length: 10 ft (3 m)
  • Tripod Thickness: 1.37 in (35 mm)
  • Optional Controllers: RF

WHAT'S INCLUDED

  • GigBar Move Plus ILS
  • Power cord
  • RF Remote

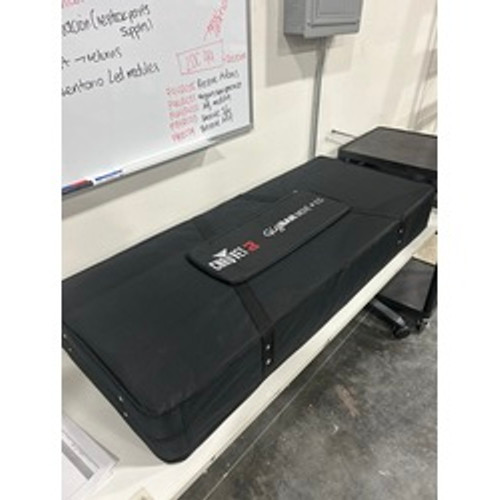

  • Carry bag
  • Tripod
  • Tripod carry bag
  • Footswitch
  • User Manual
Width:
7.05 (in)
Height:
27.05 (in)
Depth:
51.02 (in)
