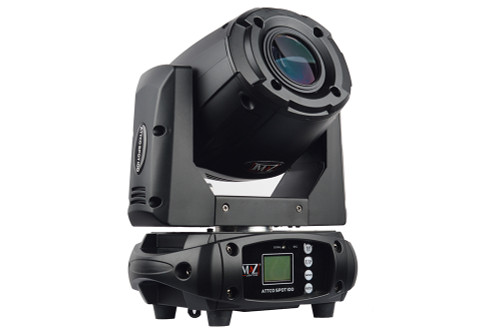

ATTCO SPOT 200
The JMAZ ATTCO SPOT 200 is a compact size, light weight, full function and high brightness moving head with built-in Wi-MAZ wireless DMX technology, using a 200W LED,
optical angle 16 degrees. Fast PAN/TILT scanning, low noise, high accuracy. It has rotating gobo wheel, static gobo wheel, color wheel, 3 facet prism, electronic focusing,
0-100% linear LED dimming and strobe effect at different speeds. Suitable for large-scale concerts, TV studios, mobile performances, night shows, weddings, etc.
optical angle 16 degrees. Fast PAN/TILT scanning, low noise, high accuracy. It has rotating gobo wheel, static gobo wheel, color wheel, 3 facet prism, electronic focusing,
0-100% linear LED dimming and strobe effect at different speeds. Suitable for large-scale concerts, TV studios, mobile performances, night shows, weddings, etc.
SPECIFICATIONS
- A 200W white LED lamp, 7500K
- Built in Wi-MAZ wireless DMX technology
- 50000 Hours life span
- Input Voltage:AC90-260V 50/60Hz
- Power Consumption: 250W
- Control Signal:DMX512, master-slave and sound activated or auto operation (9 built-in program)
- Control Channel: 14/16 DMX channels USITT DMX-512
- Dimensions:12.1”x8.8”x16.5”/30.7×22.4×41.8cm
- Packing Dimensions:15”x11”x19.9”/38x28x50.5cm
- Net Weight: 22.9lbs/10.38kgs
- Gross Weight: 27.7lbs/12.56kgs
FEATURES:
- Low power consumption
- Built-in wireless DMX technology
- Specific high precision glass optic system with 16° projection angle
- 5m-30m electric focus
- 3-Facet prism with variable speed and direction
- 0-100% Linear LED dimmer
- 25T/sec high speed LED shutter/strobe effect with variable speed
- Preset variable/random strobe and dimming pulse effect
- 4’TFT LCD display (320*240pix)
- POWERCON connector IN/OUT
- 3-Pin XLR connectors IN/OUT
- IP20 protection rating
- 55dB at 3’dB rating
- 2*1/4 turn fastening Omega clamp
- 1* Safety attachment point
MOVEMENT:
- 8/16 bit smooth and precise resolution for PAN/TILT movement
- 360°/540°/630° PAN and 90°/180°/270° TILT movement
COLORS:
- 1 Color wheel with 7 colors plus open
GOBOS:
- 1 Static gobo wheel with 8 gobos plus open
- 1 Rotatable gobo wheel with 6 rotatable and interchangeable gobos plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or counterclockwise
FUNCTION:
- PAN/TILT inversion available
- Scan position memory, auto reposition after unexpected movement
- Improved optics and flat beam field
- Variable direction rainbow effect with speed adjustable
- Fan cooling system
- Constant temperature readout and management function
- -35°C ~ 45°C max ambient temperature
