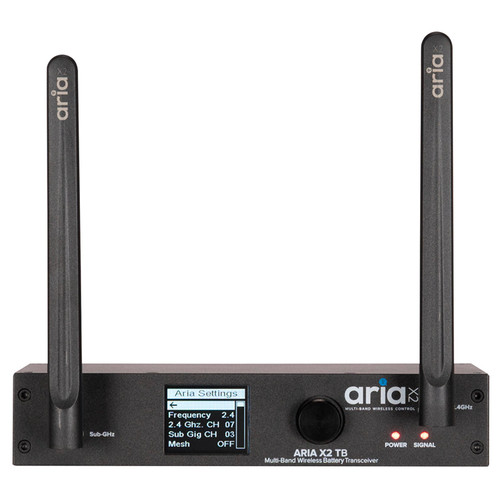

Aria X2 TB Wireless DMX Transceiver – Battery-Powered DMX & Wireless Control Solution
The Aria X2 TB Wireless DMX Transceiver delivers reliable, professional-grade wireless DMX communication with the flexibility of both AC and battery-powered operation. Designed for lighting professionals, production companies, rental houses, and permanent installations, the Aria X2 TB provides stable wireless DMX transmission and reception in a compact, rugged enclosure. Featuring Sub-GHz, 2.4 GHz, and Bluetooth connectivity, intuitive front-panel controls, and up to 20 hours of battery runtime, this versatile transceiver is engineered to keep your lighting systems connected wherever your production takes place.
Reliable Wireless DMX for Professional Lighting Systems
The Aria X2 TB supports a full single DMX universe and can function as either a wireless DMX transmitter or receiver, providing flexibility for live events, touring productions, theatrical installations, houses of worship, and architectural lighting applications. Configuration is simple using either the onboard digital display and rotary encoder or the Aria X2 BLE mobile app. Advanced wireless technology helps maintain dependable signal integrity while reducing setup complexity and cable runs.
Battery-Powered Freedom with Extended Runtime
When AC power is unavailable, the integrated rechargeable lithium-ion battery system keeps the Aria X2 TB operating for up to 20 hours on a single charge. A full recharge takes approximately four hours, making it ideal for temporary installations, outdoor events, and remote production environments. Dual-power capability ensures continuous operation whether mounted in a permanent system or deployed in the field.
Key Features
- Wireless DMX transceiver for transmitting or receiving DMX data
- Supports one full DMX universe
- Sub-GHz, 2.4 GHz, and Bluetooth connectivity
- Configure via the Aria X2 BLE mobile app or onboard controls
- AC-powered or battery-powered operation for maximum flexibility
- Up to 20 hours of continuous battery runtime
- Recharge time of approximately 4 hours
- Front-panel digital display with rotary control knob
- Supports DMX and proprietary wireless communication protocols
- Over-the-air firmware update capability
- Designed for professional entertainment, architectural, and event lighting applications
- Durable aluminum and metal enclosure
- M10 and M12 mounting threads plus integrated safety eyelet
Wireless Protocols & Connectivity
- DMX
- Bluetooth 4.2 (BLE)
- Proprietary 802.15.4 Wireless Protocol
- Aria X2 Serial Protocol
- RDM support planned in a future software release
- Aria X2 Mesh Protocol planned in a future software release
Specifications
- Frequency Range:
- Bluetooth: 2402–2480 MHz
- Zigbee: 2405–2480 MHz (EU)
- Sub-GHz: 906–924 MHz (US)
- DMX Connections: 5-pin XLR Input and Output
- Power Connections: IP65 Locking Power Input and Output
- Antenna: 5G JT SMA
- Input Voltage: AC100–240V, 50/60Hz
- Power Consumption: 2W
- Battery Type: Rechargeable Lithium-Ion 18650 Cells
- Battery Capacity: 2600mAh per cell
- Total Battery Energy: 9.36Wh
- Total Cells: 2
- Maximum Ambient Temperature: 113°F (45°C)
- Maximum Operating Humidity: <75%
- Enclosure: IP20 Aluminum and Metal Construction
- Dimensions: 6.1" x 8.5" x 1.7" (155 x 215 x 42 mm)
- Weight: 2.7 lbs (1.23 kg)
Approvals & Certifications
- CE
- cETLus
- UKCA
- FCC
In The Box
- Aria X2 TB Wireless DMX Transceiver
- Integrated Rechargeable Battery System
- User Documentation
