The Platinum Beam 15R is the next evolution in extreme ACL / Beam moving heads. Featuring the new Platinum 15R 300 watt Lamp from Philips, offering comparable output to 1200w fixtures with a new specialized optical system offering sharp gobo projections and a extreme beam “ACL / Searchlight” type effect. Featuring 8 dichroic colors, 8 rotating indexing gobos, 11 static gobos, rotating 8 facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.
FEATURES
• Razor Sharp 4.8° Beam Angle
• Uses Philips MSD Platinum 15R Lamp technology 300W
• Remote Focus, Stepless Frost (Hybrid), 8 Facet Prism
• 8 Dichroic Colors
• 19 Gobos 8 Rotating / indexing, 11 Static
• EWDMX Receiver built in
SPECIFICATIONS
• Philips MSD Platinum 15R lamp (13500th, 8000°K, 2000h) included
• 106400 Lux @ 15m
• 4.8° beam angle
• No need for cleaning or adjustment of reflector or lamp
• All lenses are anti-reflection coated
• 1 color wheel with total 8 colors + white
• Variable speed color scrolling both directions (rainbow)
• 2 gobo wheels
• First wheel with 8 rotating and interchangeable (quickout)
• Second wheel with 11 static gobos plus open
• Variable speed gobo scrolling in both directions
• Gobo Size: 14.0mm outside, 6mm image diameter
• Rotating, indexing prism: 8-facet
• Macro-function for rotating gobo/prism combinations
• Variable Frost Filter (Hybrid effect for Wash)
• Dual flag mechanical dimming system
• Variable speed strobe effect
• Preset variable/random strobe and dimming pulse effects
• Automatic Pan / Tilt position correction
• Maximum Pan-movement 630° or 540°/ 16 bit
• Maximum Tilt-movement 265° / 16 bit
• 3 Phase motors for fast, accurate Pan / Tilt positioning
• Vector Mode with blackout MIB function

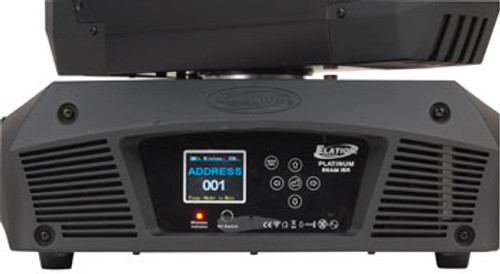

• Battery powered and colored LCD Display
• 14/16/22 DMX channels USITT DMX-512 (16-bit resolution)
• Customizable DMX channel assignment
• DMX, stand-alone, master/slave, sound activated mode
• DMX recorder and edit function integrated
• Software update via DMX, using optional E-Loader
• 3-pin and 5-Pin XLR serial input/output
• Fan cooled - fans regulated automatic or DMX
• Constant temperature readout / management function
• 2 x 1/4 turn fastening Omega Clamps
• Electronic ballast and auto switching power supply
• Power consumption: 500W max.
• Voltage: AC 100V ~ 240V 50/60Hz
• Dimensions (LxWxH): 13.7” x 15” x 22.4” / 350x380x570 mm
• Weight: 50lbs / 23 kg
• cETLus approved
| |
