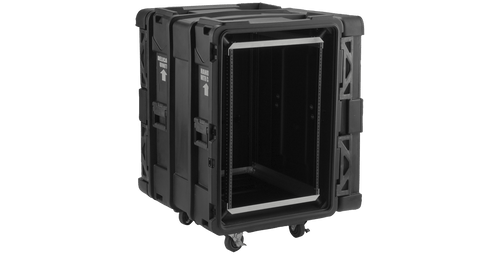

16U 24-inch Deep rSeries Shock Rack

16U 24-inch Deep rSeries Shock Rack

SKB Cases

$2,579.99
SKU:
3SKB-R916U24
UPC:
789270091627
Width:
36.00 (in)
Height:
27.00 (in)
Depth:
39.00 (in)
Shipping:
Calculated at Checkout

16U 24-inch Deep rSeries Shock Rack

SKU: 3SKB-R916U24

24" 3SKB Roto Shock Racks feature a standard depth of 24" from front to rear rail, with lid depths of 4.5" per lid.

All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to EIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre-threaded for standard 10-32 hardware and mounting screws are included.

Other standard features include an automatic ambient pressure relief valve and removable 4" casters.

Features

  • Threaded steel rails
  • Rear rails
  • Shock and water resistant
  • gasketed doors
  • Pressure relief valve
  • Field replaceable latches
  • Removable 4.5" casters
  • Stacks securely with the wheels on or off
  • Recessed latches
  • Adjustable elastomer shock absorbers
  • Provisions to add additional shocks
  • Roto molded for strength

Specifications

  • Exterior: Hard
  • Built In Shocks: Yes
  • Rack Units: 16
  • Front Rail To Back Lid: 28.25 in
  • Rail To Rail: 23.75 in
  • Rear Rail to Front Lid: 28.25 in
  • Product Weight: 117.54 lb
  • Exterior Length: 35.75 in
  • Exterior Width: 37.5 in
  • Exterior Height: 26.5 in
  • Carton Length: 39 in
  • Carton Width: 36 in
  • Carton Height: 27 in
  • Shipping Weight: 125.24 lb

Exterior height is measured without wheels installed. With wheels installed total height is 42"
